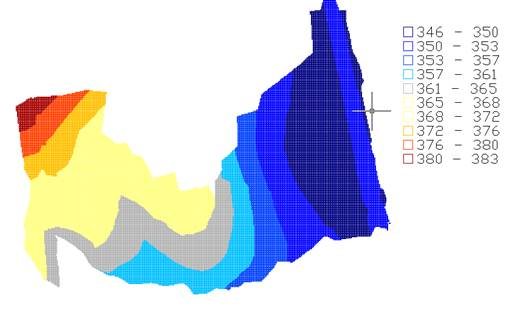

This command shows a grid file and assigns different colors according the cell heights.

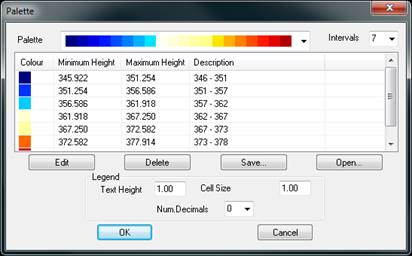

The Color Palette button shows the following dialogue which shows the elevation ranges, the color assigned and the different palettes available for assignment. The default configuration for intervals and the color palette may be edited in Map Configuration.
On the list we will be able to see the different colors assigned to each of the elevation ranges. In addition to each interval, there is an associated description which the user may customize.
Palette: Color Palette to be assigned. Some of the palettes available can be seen below:
Intervals: Color interval to be created, as many colors can be created as are available on the palette.
Edit: Editing of a given interval with the possibility of changing the minimum and maximum values and the description thereof.
Delete: Possibility of deleting one of the intervals.
Both when editing and deleting any interval, the rest of the intervals will be recalculated in line with the minimum and maximum values specified.
Save: Possibility of saving in a file the whole configuration of intervals, colors, description… in such a way that it can be recovered at any time.
Load: By using this option we will recover a configuration that has been previously saved with the previous option.
